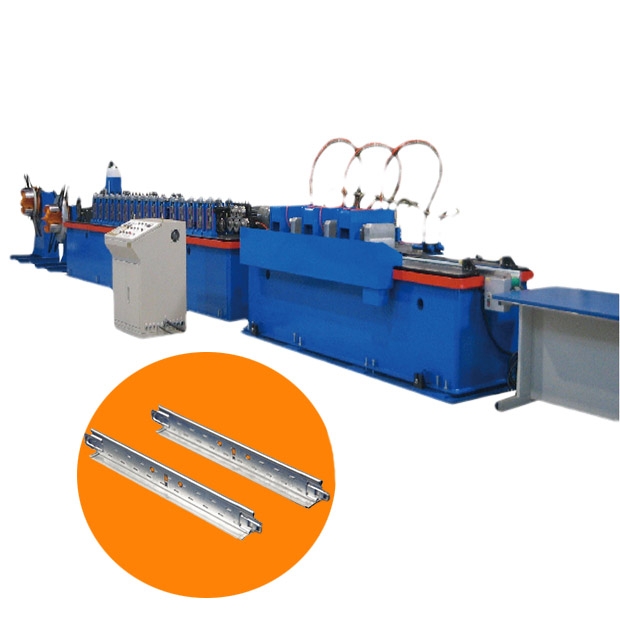

Automatic Ceiling Cross Tee Cold Roll Forming Machine

Automatic Ceiling Cross Tee Cold Roll Forming Machine

Cold Roll Forming Machine for Making Cross Tee
cross T machine and profile.jpg
/

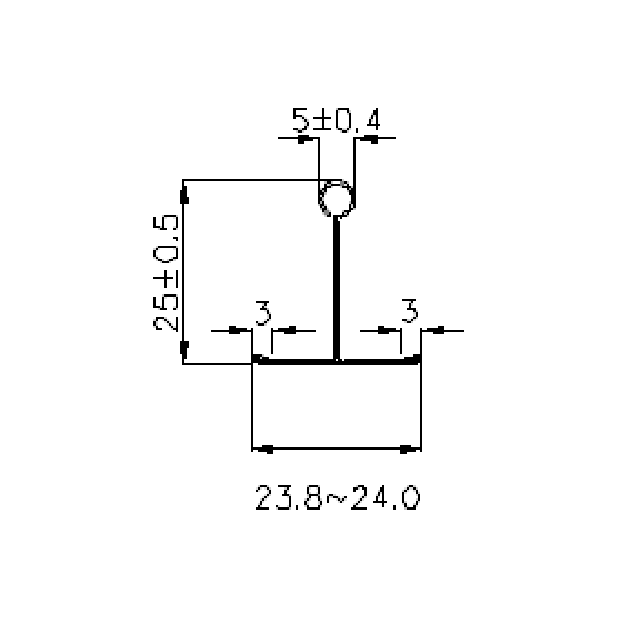

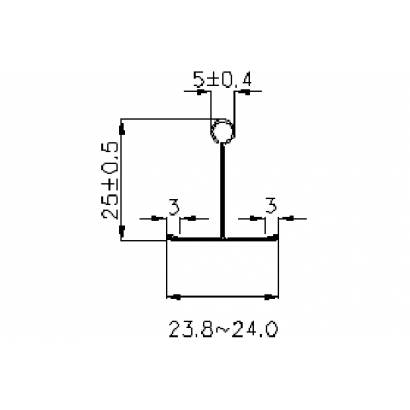

Cross T profile.png
/
/
/
  • cross T machine and profile.jpg
  • Cross T profile.png
  • DSC08283-removebg-preview.png
  • DSC08291-removebg-preview.png
DETAIL
Raw Material Galvanized steel: Plate thickness : 0.24-0.30mm
Pre-painted steel: Plate thickness :0.24-0.30mm

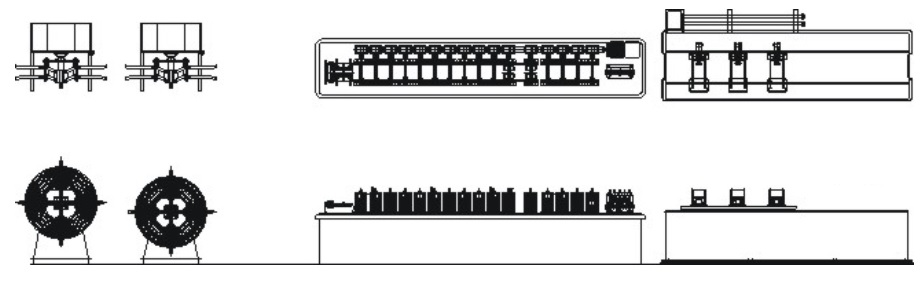

Machine Layout
Process From coil →Roll forming → Automatic punching & cut-off after forming → Finished products
Features 1. Automatic manufacturing process.
    Galvanized steel : Plate thickness : 0.28-0.30mm
    Pre-painted steel : Plate thickness : 0.24-0.30mm
2. Roll forming speed : Max 40M/min, and speed is adjustable.
    Max 50 PCS/ minute@600mm /2 feet
3. Automatic hydraulic punching and cut-off device.
4. Die material is alloy steel SKD11 with vacuum heat treatment,
    hardness  HRC 58-61°, wear-resistant, good rigid structure and very durable.

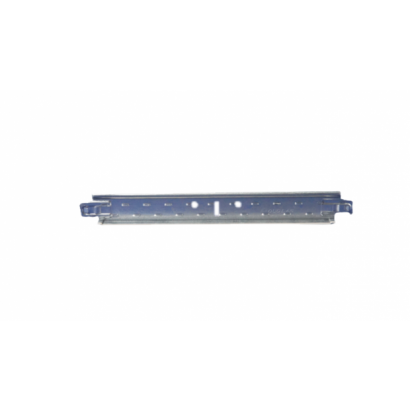

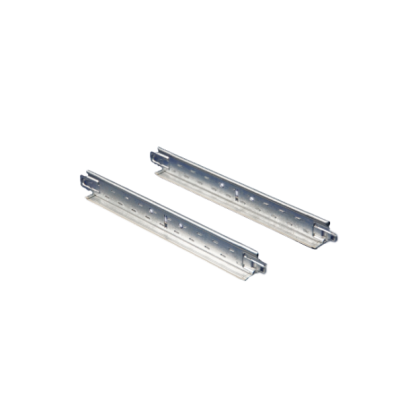

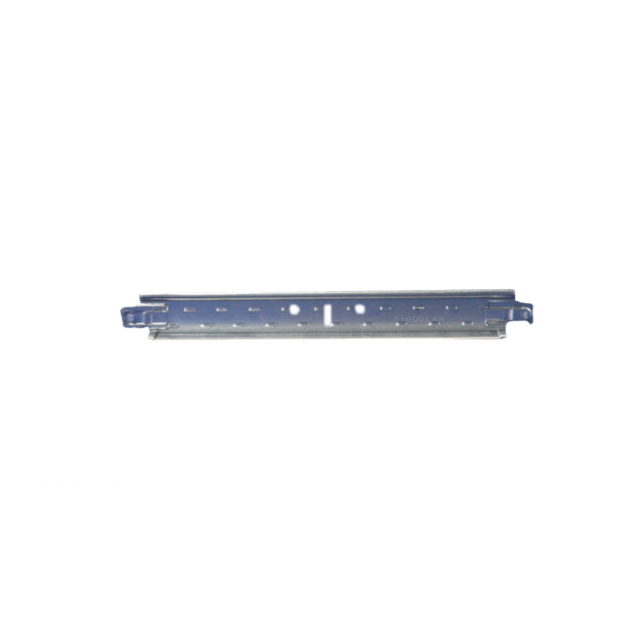

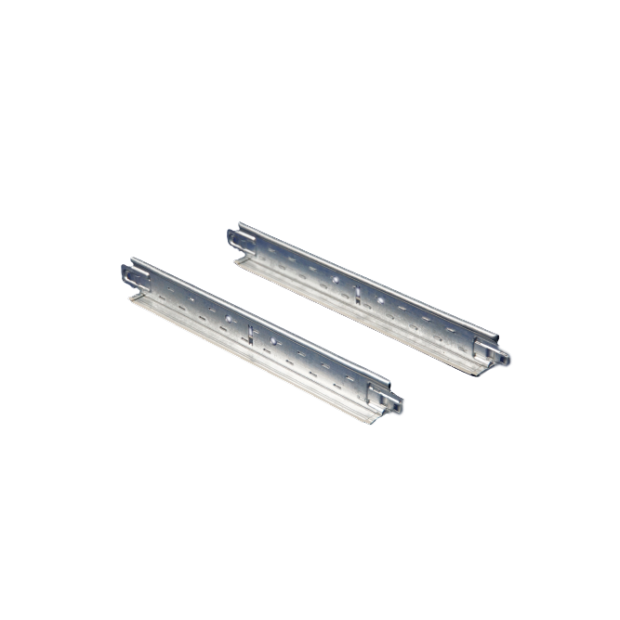

5. Products length: 600mm/2ft or 1200mm/4ft.
6. Length tolerance within ±0.2mm.
Specification A. Uncoiler for galvanized steel x one unit.
     1. Loading capacity: 1,100 Kgs
     2. Coil specification: O.D. 1,200 mm, I.D. 480 – 510 mm, plate width: 150 mm.
     3. Manual coil tightening
     4. Pulling force from roll forming machine.
B. Uncoiler for pre-painted steel x one unit.
   1. Loading capacity : 250 Kgs
   2. Coil specification: OD: 1,200 mm, ID: 480 – 510 mm, plate width : 50 mm.
   3. Manual coil tightening.
   4. Pulling force from roll forming machine.
C. Cold roll forming machine x one unit.
  1. Model: G-240-L.
  2. Roll forming stands: 16 stands with entry guide stand
  3. The main machine base is made of high-strength steel with precise welding,
      stress relief treatment. Each stand will have an individual worm gear reduction,
      and common drive shaft to make all rollers are running simultaneously.
  4. Main driven motor: 10 HP motor with 10HP inverter.
  5. Roll forming rollers: one full set for cross tee 25 x 24
  6. Roller shaft: Ø40mm, in S45C material.
  7. Rollers: in alloy steel SKD11 with vacuum heat treatment,
       Hardness HRC 58-61°, wear-resistant, good rigid structure and durable.
  8. Roll forming speed: Max 40M/minute. Roll forming speed is adjustable.
  9. Product length: Max. 1200mm or 4 feet.
D. Hydraulic automatic punching& cut-off device x one unit
  1. Punching dies are in alloy steel SKD11 with vacuum heat
     treatment, Hardness up to HRC 58 – 61, wear-resistance, good steel structure,
     durable.
  2. Unique design gives trouble-free operation.
  3. Cut-off length: 600mm/12ft or 1200mm/4ft
  4. Hydraulic pack (30 HP): 1 set.
  5. Hydraulic cooling system: 1 set.
  6. Punching die: double head die:1 set, tail die: 1 set
                           Middle hole die: 1 set
E. Product run-out table (3M) x one unit.
    Material run-out table for finished parts collection.
F. PLC electric control system x one unit.
  1. Mitsubishi PLC controller x 1 set
  2. HMI control panel x 1 set.
  3. Electric voltage will be confirmed before placing order.
